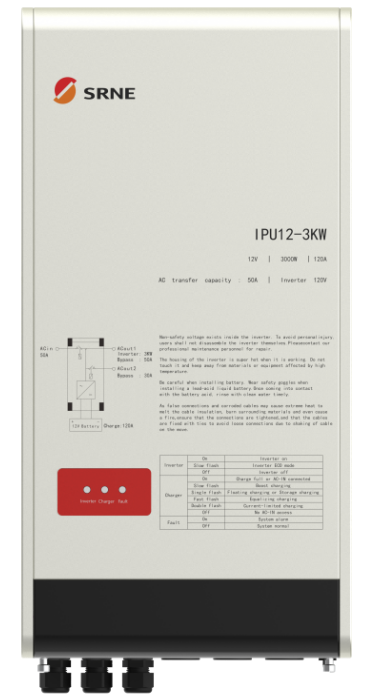

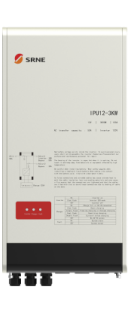

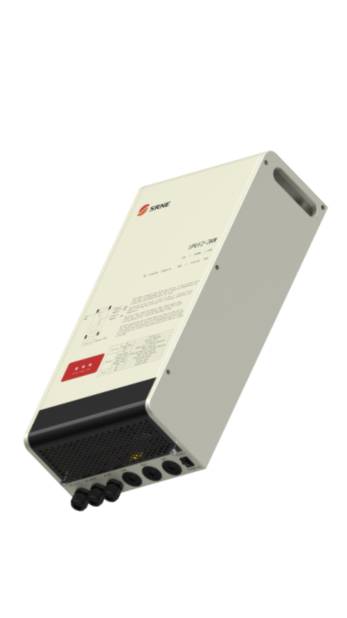

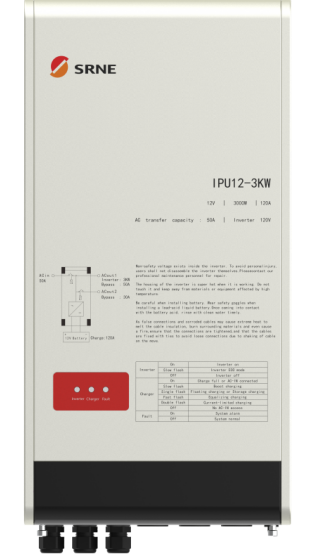

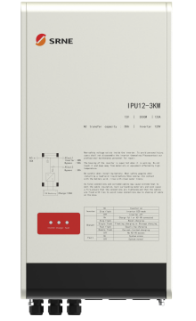

IPU-3KW Single Phase Transformer Inverter

RV system

12V| 120Vac|20A
IPU-3KW Series

Specifically designed for RV

12V battery support with multi-stage charging for extended life.Stable, pure sine wave output with voltage and frequency stabilization.

Security intelligence

Mobile app monitoring of device parameters.Quiet operation for a comfortable environment.Comprehensive safety features, including N-G grounding

User-Friendly

Easy to install and simple to use. Natural cooling, absolutely quiet.

Efficient

Stable, pure sine wave output with voltage and frequency stabilization.

Safety

Comprehensive safety features, including N-G grounding

Intelligent

Supports TTL communication.Mobile app monitoring of device parameters.

OVERVIEW

MODEL
IPU-3KW
Rated Output Power
3,000W
Max. Output Power
6,000VA
Rated Output Voltage
120Vac ±2%
Wave Form
Pure Sine Wave
Rated Output Frequency
50/60Hz
AC OUT1 Output Current
50A
AC OUT2 Output Current
30A
AC Input Voltage
90~140Vac
AC Input Frequency
45~65Hz
AC Input Rated Current
0~50A
Battery Charging Rated Current
0~120A
Rated Battery Voltage
12V
