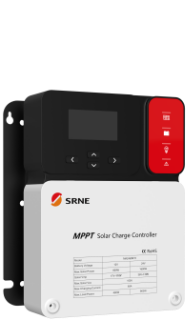

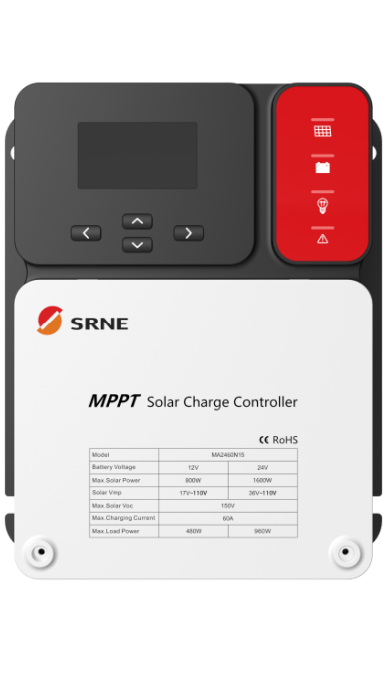

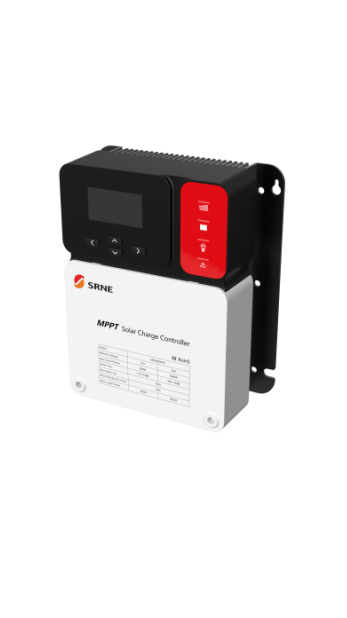

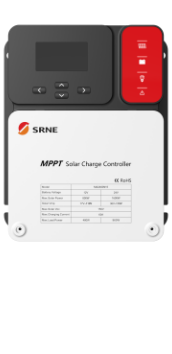

MA Series

RV system

MPPT | 12/24/36/48V | 30-60A
MA Series 30-60A

For off-grid application

Can be connected to both PV 、battery and load.Multiple load operating modes to meet diverse needs.

All-in-One

Supports multiple battery types.Highly integarted, helps you save space and wire.

User-Friendly

Easy to install and simple to use.Natural cooling, absolutely quiet.

Efficient

MPPT with up to 99.9% efficiency.Support solar panel 2 in series/more in parallel.

Safety

Complete charge and discharge protection mechanism.High quality components for stable operation.

Intelligent

Supports TTL RS485 and CAN (RV-C protocol).Supports Bluetooth with mobile APP.

OVERVIEW

Model
MA2430N15
Max.Voltage of Open Circuit
150Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
30A
Rated Load Current
30A
MPPT Tracking Efficiency
>99%
Weight
2.3kg(5.1lb)
Dimension
260*216*83.2mm
Model
MA2440N15
Max.Voltage of Open Circuit
150Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
40A
Rated Load Current
40A
MPPT Tracking Efficiency
>99%
Weight
2.3kg(5.1lb)
Dimension
260*216*83.2mm
Model
MA2460N15
Max.Voltage of Open Circuit
150Vdc
Rated Battery Voltage
12/24Vdc
Rated Charging Current
60A
Rated Load Current
40A
MPPT Tracking Efficiency
>99%
Weight
3.4kg(7.5lb)
Dimension
260*216*98.5mm
Model
MA4830N15
Max.Voltage of Open Circuit
150Vdc
Rated Battery Voltage
12/24/36/48Vdc
Rated Charging Current
30A
Rated Load Current
30A
MPPT Tracking Efficiency
>99%
Weight
3.6kg(7.9lb)
Dimension
260*216*98.5mm
