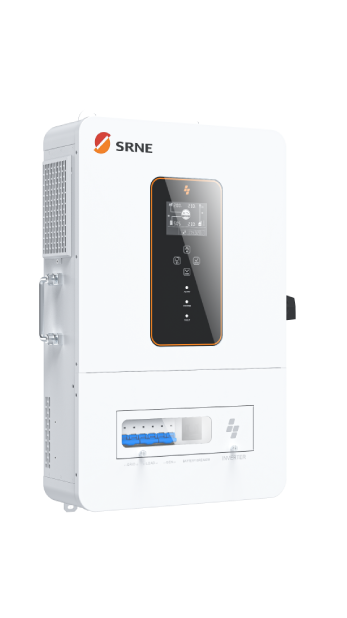

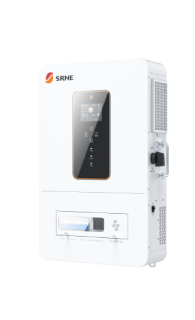

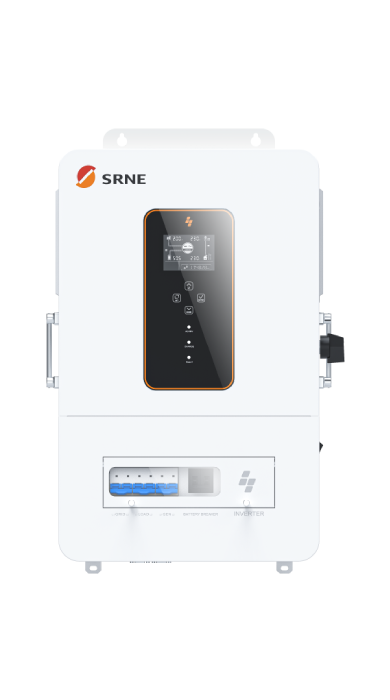

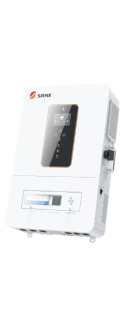

Serie ABP

Off grid inverter

4-10kW | Split/Single-Phase
ABP Serie 4-10kW

Efficiente

Solar Charger Controller up to 200A charging current

Protezione impermeabile Grado di protezione

Optional CT improves safety and reliability

Installazione conveniente

Support SUB working mode: support Grid and PV hybrid charging

Sicurezza

Supports both mains and generator power input with intelligent switching

Intelligente

Support time-sharing charge and discharge function

Comunicazione

Support 6 parallel machines up to 60kW

OVERVIEW

Model
ABP4840U100-H
Rated Output Power
4000W
Max. Output Power
8,000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Load capacity of Motors
50Hz/60Hz
Parallel Capacity
1~6 Units
Num. of MPPT Trackers
1+1
Max. Open Circuit Voltage
550Vdc+550Vdc
Model
ABP4850U120-H
Rated Output Power
5000W
Max. Output Power
10000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Load capacity of Motors
50/60Hz
Parallel Capacity
1~6 Units
No. Of MPPT
1+1
Max. Open Circuit Voltage
550Vdc+550Vdc
Model
ABP4860U140-H
Rated Output Power
6000W
Max. Output Power
12000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Load capacity of Motors
50/60Hz
Parallel Capacity
1~6 Units
No. Of MPPT
1+1
Max. Open Circuit Voltage
550Vdc+550Vdc
Model
ABP4865U140-H
Rated Output Power
6500W
Max. Output Power
13000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Load capacity of Motors
50/60Hz
Rated Battery Voltage
48V
Max. Input Current
18A+18A
No. Of MPPT
1+1
Model
ABP48100U200-H
Rated Output Power
10,000W
Max. Output Power
20,000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Rated Frequency
50/60Hz
Rated Battery Voltage
48V
Max. Solar Charging Current
200A
No. Of MPPT
1+1
Model
ABP4880U180-H
Rated Output Power
8,000W
Max. Output Power
16,000VA
Rated Output Voltage
120/240 Vac (single-phase/split-phase)
Rated Frequency
50/60Hz
Max. Solar Charging Current
180A
Max. Mix Charge Current
180A
No. Of MPPT
1+1
